Tractor Mounted Straw Chopper for Livestock Bedding | 1.2 Ton Heavy Duty Grinder
Brand : China YULIN
Product origin : China
Delivery time : 30 days
Supply capacity : 10000
Heavy Duty Straw Grinder Machine for Animal Bedding - 2.5 T/H Tractor PTO Hay Shredder Tractor Mounted Straw Chopper for Livestock Bedding | 1.2 Ton Heavy Duty Grinder Professional Straw Shredder for Horse & Cattle Bedding - Makes Soft Flakes PTO Driven Straw Mill for Animal Bedding | 10-30mm Adjustable Soft Cut Turn Straw into Bedding: 2.5 Ton Per Hour Tractor Operated Shredder

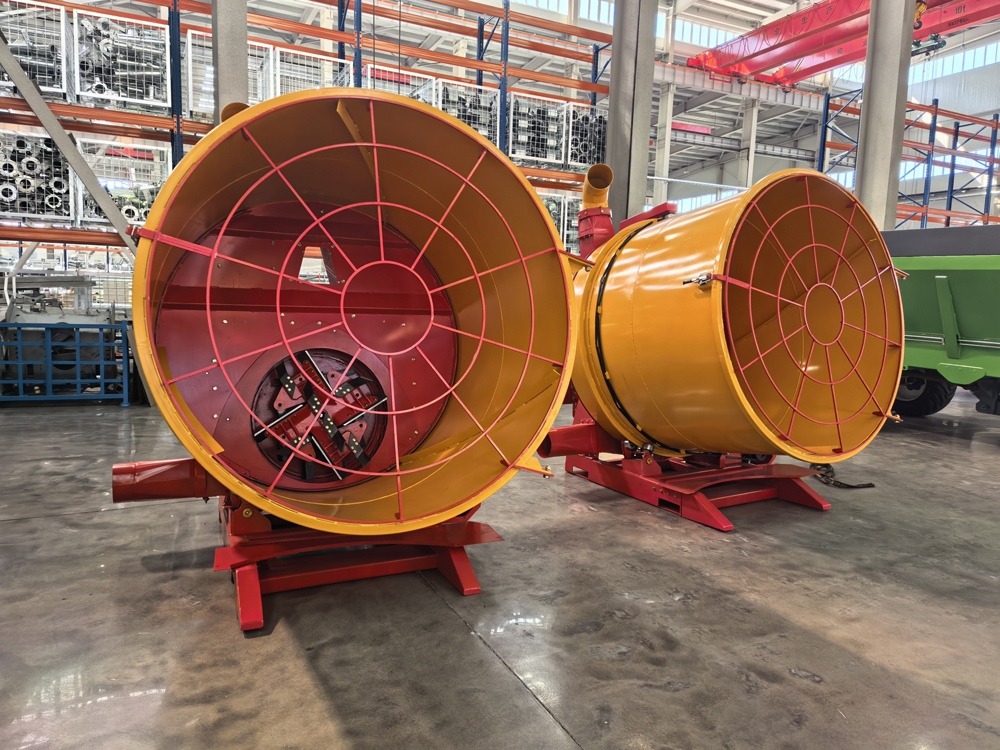

Efficient Cylinder Straw Shredder
Are you struggling with the massive accumulation of straw and hay on your farm, which takes up valuable space and is difficult to handle? Traditional disposal methods like burning are not only environmentally unfriendly but also a waste of resources. Our Tractor-Driven Cylinder Straw Shredder quickly processes straw, rice husks, and hay into ideal soft particles, perfect for use as animal bedding. It turns waste into profit and significantly reduces your costs for purchasing bedding materials.

Unique cylinder crushing chamber design enables material recirculation, ensuring uniform output size (Adjustable: 10-30mm), which is ideal for bedding for dairy cows, horses, and poultry.
Standard PTO (Power Take-Off) driveline, easily connects to a 50-80 HP tractor. No need for additional electricity. Perfect for field operations, saving fuel while providing powerful performance.
Net weight of 1.2 tons ensures a solid and robust structure. The stable base minimizes vibration during operation, guaranteeing long-lasting durability.

| Specification | Detail |
|---|---|
| Model Number | 9Z-2.5 / TY-2024 (Example) |
| Machine Type | Cylinder Hammer Mill / Straw Shredder |
| Dimensions (L x W x H) | 2380 × 2000 × 2550 mm |
| Net Weight | 1200 kg (1.2 Tons) |
| Power Source | Tractor PTO (Power Take-Off) |
| Required Tractor Power | 50 - 80 HP |
| Capacity | 2.5 Tons/Hour (Straw < 15% moisture) |
| Output Size | 10 - 30 mm (Adjustable by screens) |
| Rotor Diameter | 650 mm |
| Hammer Quantity | 24 Pieces (Example) |
| Main Shaft Speed | 1500 r/min (Example) |

Animal Bedding: Processed soft straw pieces provide excellent moisture absorption and warmth for livestock barns.
Fodder Preparation: Chopped straw can be mixed with concentrates to improve palatability.
Composting: Ideal raw material for organic fertilizer, accelerating the fermentation process.
Professional Manufacturer: With 20 years of experience in agricultural machinery, our products are CE certified.
Customization Service: We can adjust the screen mesh size according to your tractor's HP or specific output requirements.
Global Shipping: Strong wooden case packaging ensures safe sea transportation. Spare parts are included with the machine.
